animeo KNX

animeo KNX guarantees optimum lighting management, glare protection, and better viewing comfort. This saves energy spent on artificial lighting and improves the lighting conditions in the room. Shadows on the building facade can be taken into account for a defined zone to maximise the use of natural light.

Learn more about shadow management...

Solar gains from the sun in winter when occupants are absent.

Diminished slat-turn angles and reduced cooling requirements in summer.

Intelligent wind protection controlled using facades affected by the wind. In all other facade zones, the blinds remain in the sun protection position and thus reduce the load for cooling.

The blinds move up into the security position only when the facade is affected by wind speed, depending on wind direction. All other areas of the facade remain shaded. In the event of a storm, the blinds on all facades move up.

 All blinds can be operated locally. The user is able to override the automatic function.

• Simplified programming of all functions, such as wind direction and sun-tracking.
• Other applications such as lighting, heating, cooling, can be integrated.
• Individual sun protection control per facade and thus, improved working conditions in every room.
• Sensors can be used in multiple ways.
• All types of blinds and facade elements can be controlled. 19 different blinds and facade elements are available.
• Manual override of automatic orders possible at room level.

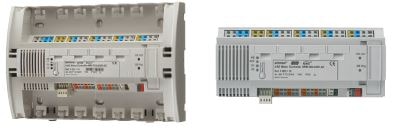

Wall-mounted Motor Controller / DIN-rail Motor Controller
Compatible with all installation environments
